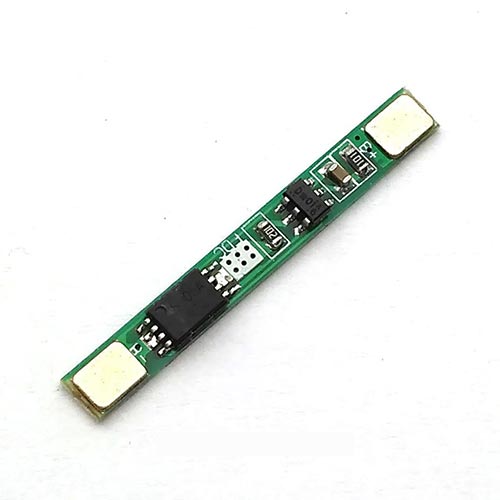

1S ličio jonų akumuliatorių krovimo ir apsaugos plokštė.
Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);
4) MOS transistor can control the battery charge and discharge;
Parameter:
Over charge voltage: 4.25±0.05V
Over charge release voltage:4.23±0.05V
Over discharge voltage:2.54±0.1V
Maximal continuous charging current: 2A
Maximal continuous Discharging current: 2A
Over current protection: 3A
Size: L40*W4*T3mm
Weight: 10g
1S 3.7V 3A li-ion baterijos apsaugos plokštė
- Prekės kodas: 0172
- Prieinamumas: Sandėlyje
-
1.50€
