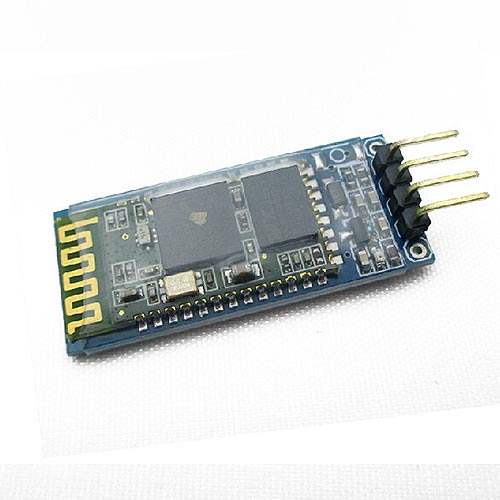

• HC-06 Bluetooth modulis

1.The HC-06 is slave module, interface VCC,GND,TXD,RXD,STATE,EN. State interface can tell the status of LED, EN is enable pin, the current consumption<20uA when it is closed

2.LED indicate the status of bluetooth connection: if the LED is flashing, it means the bluetooth does not connect, if the LED is light, it means the bluetooth connected

3.Anti-reverse diode, with 3.3V LDO -Input voltage: 3.6-6V

4.Current: The current is 30mA when it is unparied, it is 10mA when it is paried. The input voltage can not over 7V

5.Interface level 3.3V, it can be connected with various SCM directly, such as: 51, AVR, PIC, ARM, MSP430, etc. It is not allowed to connected with MAX232

6.Effective Distance: 10 meters in the open field

7.After paried, it can be used as full-duplex serial, it do not need anything about bluetooth protocol, but only support 8 data bits, 1 stop bit and no parity communication format

8.When it without bluetooth connection, it support baud rate, name, passkey through AT command. The information will be saved when power is off. After connection, it will be changed to pass-through mode automatically

9.Compatible with computer, cell phone, PDA, PSP (which with bluetooth function)

10.The default password is 1234

  • Frequency 2.4G
  • Working Voltage 3.6~6VV

Parašyti įvertinimą

Pastaba: Įvestas tekstas nebus išverstas.
    Blogas           Geras

HC-06 Bluetooth modulis

  • Prekės kodas: 0132
  • Prieinamumas: Sandėlyje
  • 7.80€
